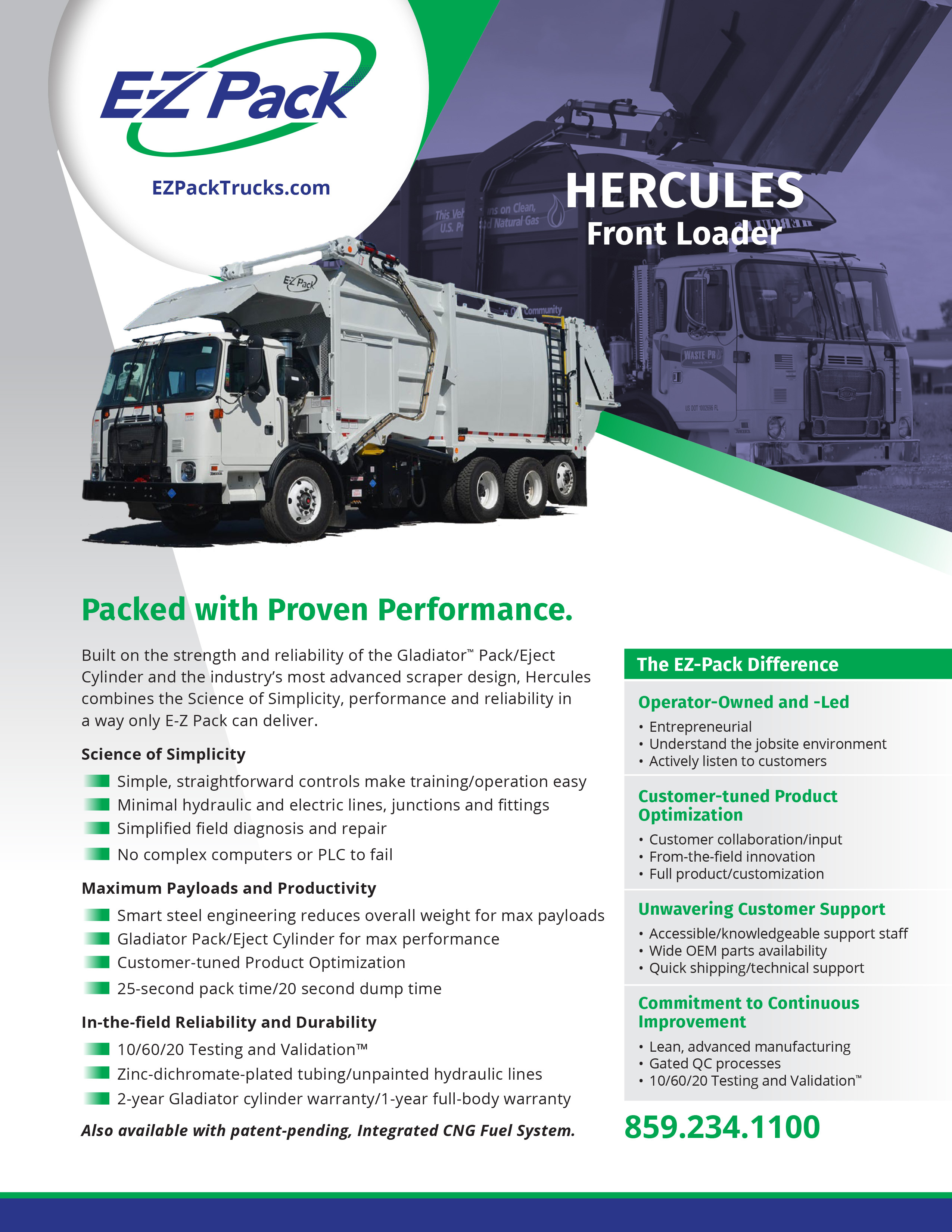

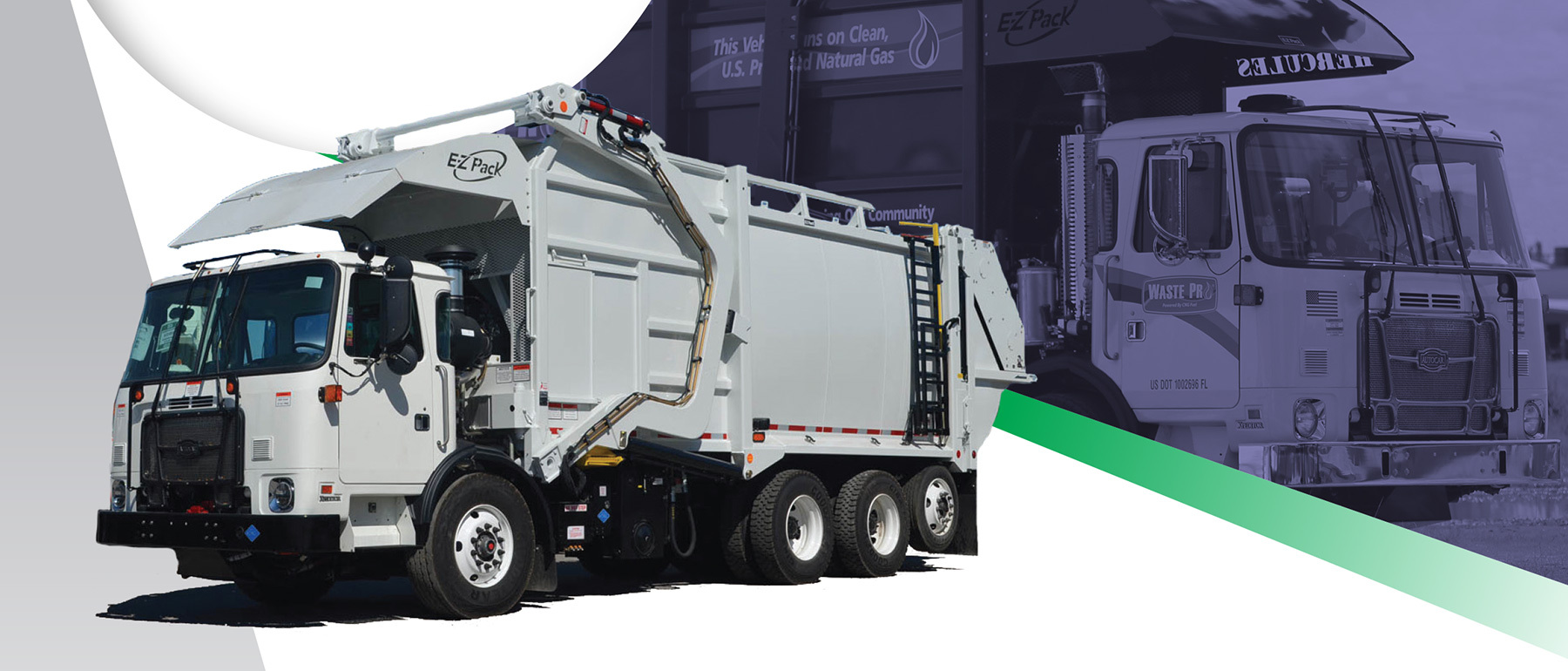

Hercules Front Loader
Packed with Proven Performance.
Built on the strength and reliability of the Gladiator™ Pack/Eject Cylinder and the industry’s most advanced scraper design, Hercules combines the Science of Simplicity™, performance and reliability in a way only E-Z Pack can deliver.
Science of Simplicity™
• Simple, straightforward controls make training/operation easy
• Minimal hydraulic and electric lines, junctions and fittings
• Simplified field diagnosis and repair
• No complex computers or PLC to fail
Maximum Payloads and Productivity
• Smart steel engineering reduces overall weight for max payloads
• Gladiator Pack/Eject Cylinder for max performance
• Customer-tuned Product Optimization
• 25-second pack time/20-second dump time
In-the-field Reliability and Durability
• 10/60/20 Testing and Validation™
• Zinc-dichromate-plated tubing/unpainted hydraulic lines
• 3-year Gladiator cylinder warranty/1-year full-body warranty

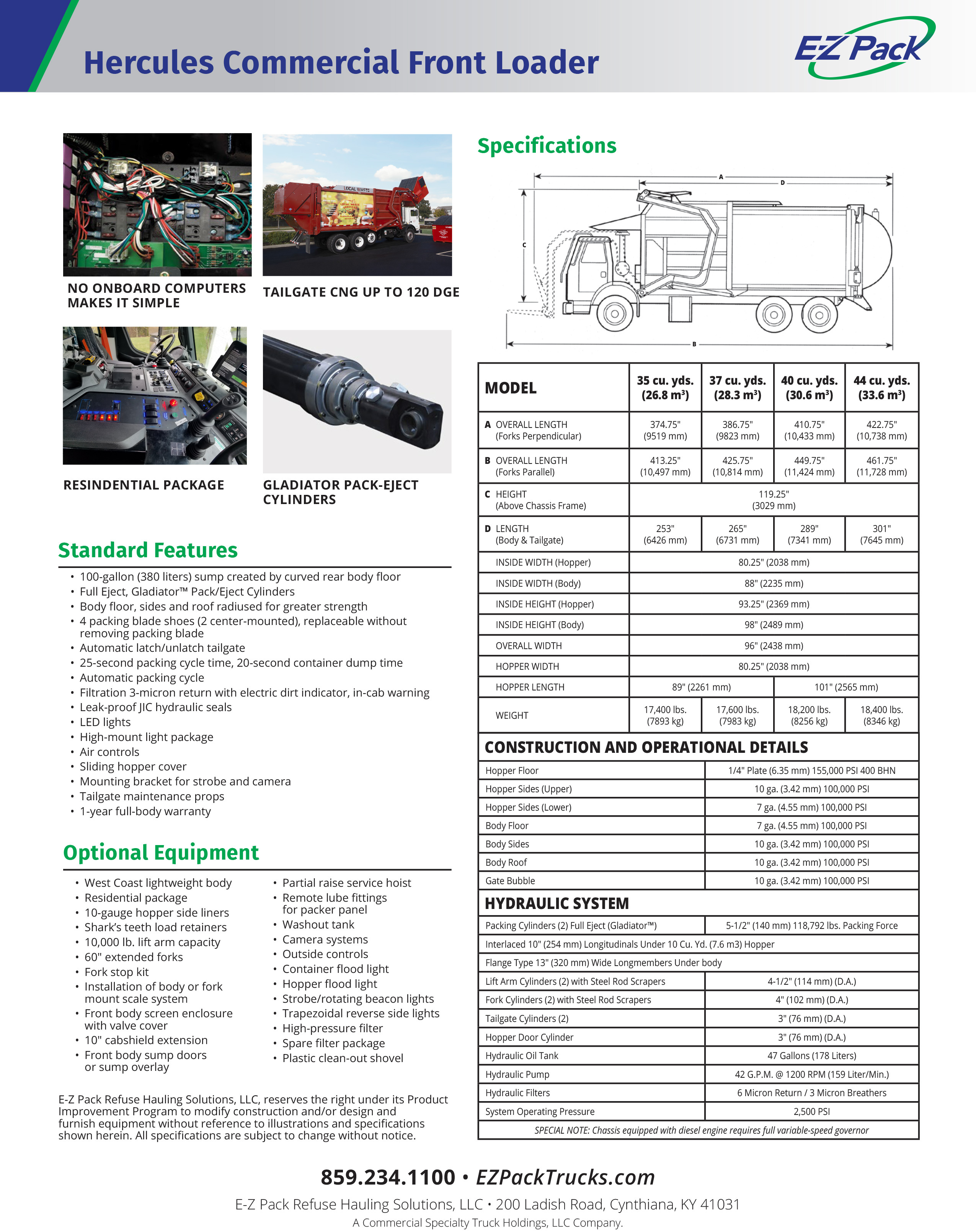

Standard Features
• 100-gallon (380 liters) sump created by curved rear body floor
• Full Eject, Gladiator™ Pack/Eject Cylinders
• Body floor, sides and roof radiused for greater strength
• 4 packing blade shoes (2 center-mounted), replaceable without removing packing blade
• Automatic latch/unlatch tailgate
• 25-second packing cycle time, 20-second container dump time
• Automatic packing cycle
• Filtration 3-micron return with electric dirt indicator, in-cab warning
• Leak-proof JIC hydraulic seals
• LED lights
• High-mount light package
• Air controls
• Sliding hopper cover
• Mounting bracket for strobe and camera
• Tailgate maintenance props
• 1-year full-body warranty
Optional Equipment
• West Coast lightweight body
• Residential package
• 10-gauge hopper side liners
• Shark’s teeth load retainers
• 10,000 lb. lift arm capacity
• 60" extended forks
• Fork stop kit
• Installation of body or fork mount scale system
• Front body screen enclosure with valve cover
• 10" cabshield extension
• Front body sump doors or sump overlay
• Partial raise service hoist
• Remote lube fittings for packer panel
• Washout tank
• Camera systems
• Outside controls
• Container flood light
• Hopper flood light
• Strobe/rotating beacon lights
• Trapezoidal reverse side lights
• High-pressure filter
• Spare filter package
• Plastic clean-out shovel
Your truck, customized.
Customer-Tuned Product Optimization™
In a world of manufacturing bent on dictating what you need, we’re different. We’re a company of collaborators, led by former operators, who know that many of the best ideas come right out of the field, from customers—not corporate boardrooms. We pride ourselves on our agility and ability to accommodate customer requests with their orders—everything from moving a component a few inches, to innovating a game-changing design feature.
With Customer-tuned Product Optimization, you tell us what you need and the mission you want your equipment to accomplish, and our sales and engineering team will work with you to innovate the optimal solution to improve your productivity, efficiency and profitability. Customer-tuned Product Optimization—our products, built for your idea of success.
NO ONBOARD COMPUTERS MAKE IT SIMPLE
SIMPLE, EASY TO USE INTEGRATED CONTROLS
CLEAR SIGHTLINES
GLADIATOR CYLINDERS
